Tandrad, Spindel en Turbine

Meetbereiken van 0,005 liter/minuut tot 48000 liter/minuut vloeistof, gassen tot 107500 liter/minuut. Analoge uitgangen, M-bus uitgangen en Frequentieuitgangen. Nauwkeurigheden tot 0,25% van de meetwaarde. EExiaIIC uitvoeringen. Speciale uitvoeringen leverbaar voor o.a.: schurende middelen, verfsoorten, pharmaceutische vloesitoffen, aromatische vloeistoffen, oliesoorten, lijmsoorten, wassoorten, etc.

1. Turbine Flow Meter (HM)
2. Helical Flow Meter (SRZ)
3. Gear Flow Meter (ZHM)
4. Micro Flow Meter (LFM)
5a. Puls Pick-up Versterkers
5b. Analoge Pick-up Versterkers

Vraag direct meer informatie op

ANKER

1. Turbine Flow Meter (HM)

Type Eigenschappen Toepassingen Downloads
Turbine Flow Meters (HM) – General Overview
  • Measuring ranges: 0.03…25,000 ltr./min
  • Viscosity range: 0.1…100 mm²/s
  • Linearity: ±0.5% of actual value.
  • Turbine Flow Meters for flow measurement of fuels, light fuel oil, thermal oil, solvents, tap and demineralised water as well as special models for refrigerants, pharmaceutical fluids, cryogenic fluids, liquefied gases and high-pressure applications.
Download
Turbine Flow Meter with Flange Ends
(HM-F)

  • Measuring ranges: 0.03 up to 25,000 l/min
  • Viscosity: 0.1 up to 100 mm²/s
  • LInearity: ±0.5 % of actual value.
  • HM…F turbines are equipped with flanges as per DIN or ANSI.
Download
Turbine Flow Meters with Female Inch Threads
(HM-R)

  • Measuring range: 0.03 bis 400 l/min
  • Viscosity: 0.1 up to 100 mm²/s
  • Linearity: ±0.5 % of actual value.
  • HM…R turbines have inch sized female threads allowing a great variety of connections.
Download
Turbine Flow Meters with Ermeto Fittings (HM-E)
  • Measuring range: 0.3 up to 500 l/min
  • Viscosity: 0.1 bis 100 mm²/s
  • Linearity: ±0.5 % of actual value.
  • HM…E turbines are equipped with Ermeto fittings.
Download
Turbine Flow Meters for Pharmaceutical Applications (HM-TRI)
  • Measuring range: 0.3 up to 400 l/min
  • Viscosity: 0.1 up to 100 mm²/s
  • Linearity: ±2.0 % of actual value.
  • For sanitary and purity reasons HM…TRI turbines have the following features:
    Threadless tube fittings type „Tri-Clamp“ as per DIN 32676
    Special construction eleminating dead spots
    Slide bearing with lateral bores to enable flush processes.
Download
Aluminium Turbine Flow Meters (HM-U)
  • Measuring ranges: 1.2 up to 600 l/min
  • Viscosity: 0.1 up to 100 mm²/s
  • Linearity: ±1.5 % of actual value
  • Pressure: max. 400 bar.
  • Aluminium Turbine Flow Meters with ball bearings for hydraulic applications.
Download
Turbine Flow Meters for Subsea Applications
(HM-Subsea)
  • Measuring range: 0.3 up to 500 l/min
  • Viscosity: 0.8 up to 100 mm²/s
  • Linearity: ±1 % of actual value.
  • Pressuer: up to 1400 Bar.
  • Materials:
    • Housing: as per 1.4404 (AISI 316L), others on request
    • Wheels: as per DIN 1.4460 (AISI 329), others on request
    • Bearing: tungsten carbide
  • HM turbine flowmeters for underwater applications are reliable, durable and robust flow instruments, specially developed for challenging submarine flow applications.
Download

ANKER

2. Helical Flow Meter (SRZ)

Type Eigenschappen Toepassingen Downloads
Helical Flow Meters in Standard Design
(SRZ-ST)

  • Measuring range: 0.4…400 l/min
    Viscosity: max. 1×10^6 mm²/s
    Linearity: ±0,25 % of actual value
    Pressure: max. 400 bar.
  • Flow meters for epoxy resigns, PVC and underbody sealants, anti-flutter materials, adhesives, polyurethane, polymers, sealants, petrochemicals and thixotropical fluids, grease, oil, glues, heavy fuel oil.
Download

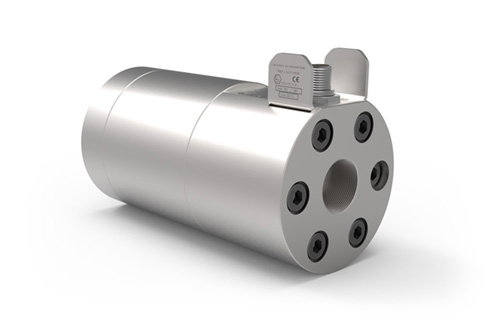

Helical Flow Meter with Integral Double Pickup (SRZ-Compact)
  • Measuring range: 0.4….400 l/min
  • Viscosity: max. 1×10^6 mm²/s
  • Linearity: ±0,25 % of actual value
  • Pressure: max. 400 bar.
  • Compact flow meter with integral double pickup for flow measuerement of epoxy resigns, PVC and underbody sealants, anti-flutter materials, adhesives, polyurethane, polymers, sealants, petrochemicals and thixotropical fluids, grease, oil, glues, heavy fuel oil.
Download
Helical Flow Meters with Ball Bearings (SRZ-KL)
  • Measuring ranges: 0.4…400 ltr./min
  • Viscosity: max. 1×10^6 mm²/s
  • Linearity: ±0.25% of actual value
  • Pressure: max. 400 bar.
  • The series SRZ KL flowmeter (KL for ball bearing version) is a volume flow meter intended primarily for lubricating, non-abrasive fluid applications.
Download
Helical Flow Meter High Resolution
(SRZ-HR)

  • Measuring range: 0.4….40 l/min
  • Viscosity: max. 1×10^6 mm²/s
  • Linearity: ±0,25 % of actual value
  • Pressure: max. 400 bar.
  • The High Resolution helical flow meter series is used mainly in applications with highly viscous, abrasive and filled, lubricating and non-lubricating media. Extremely high-resolution electronics integrated in the measuring equipment support the measurement of the smallest dosage quantities in applications with the highest reproducibility requirements.
Download

ANKER

3. Gear Flow Meter (ZHM)

Type Eigenschappen Toepassingen Downloads

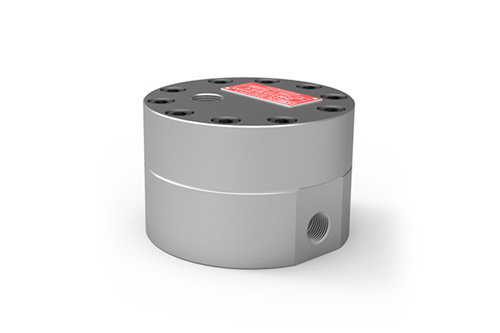

Gear Flow Meter Std (ZHM-ST)
  • Standard version
    Stainless steel meters
    lubricating and nonlub-ricating fluids
  • Measuring range: 0.005…1000 l/min,
    pressures up to 630 Bar.
  • Gear flow meters are positive displacement meters which are used in various applications. KEM offers a great variety of models e.g. for paints, underbody seal, sealants.
Download
Gear Flow Meter with Ball Bearings
(ZHM-KL)
  • Measuring range: 0.002…1000 l/min
    Auccuracy: up to ±0,1%
    Linearity: ±0.5 % of actual value,
    Pressure: max. 630 bar.
  • Gear Flow Meter with ball bearings.
Download
Gear Flow Meters for High Pressure Applications
(ZHM-HP)
  • Measuring range: 0.002… up to 70 l/min
    Repeatability: ±0.1 % of actual value
    Linearity: ±0.5 % of actual value
    Pressure: max. 1035 Bar
    Temperature: max.
    +150 °C.
  • Gear Flow Meters for High Pressure Applications with Autoclave Connections up to 1035 Bar.
Download
Gear Flow Meters for Low Viscous, Lubricating Fluids
(ZHM- MK)

  • Measuring range: 0.002… up to 70 l/min
    Repeatability: ±0.05 % (under the sam conditions)
    Linearity: ±0.1 % of actual value
    Pressure: max. 345 Bar
    Temperature: max.
    +180 °C.
  • The ZHM MK gear flow meter are flow meters which are mainly used in lubrication and non-viscous liquids. Therefore they are used especially for the fuel consumption measurement and the dosing of low viscous media.
Download
Aluminium Gear Flow Meters (ZHA-KL)
  • Measuring ranges: 0.02…1000 l/min
    Viscosity range: 5…25,000 mm²/s
    Linearity: ±0.5% of actual value,
    Pressure: max. 315 bar.
  • Aluminium Gear Flow Meters with ball bearings.
Download
Gear Flow Meter Cartridge Design
(ZHM-CT)

  • Cartridge design
    Stainless steel or Aluminium
    For quick media changes.
  • Measuring range: 0.005…3 l/min,
    pressures max 315 Bar.
  • Stainless steel meter with optimized space for quick media changes and short wash cycles. Patented “light-weight design“.Aluminium version: Cost-effective flowmeter for lubricating fluidsand.
Download

ANKER

4. Micro Flow Meter (LFM)

Type Eigenschappen Toepassingen Downloads
Micro Flow Meter
for low-viscosity fluids in dosing and filling systems
(LFM)
  • Measuring range: 0.005…0.25 l/min
  • Viscosity: 0.6…6 mm²/s
  • Linearity: ±2.5 % of actual value.
  • The LFM micro-flowmeter is suitable for low-viscosity fluids in dosing and filling applications of all kinds.
Download

ANKER

5a. Puls Pick-up Versterkers

Type Eigenschappen Toepassingen Downloads

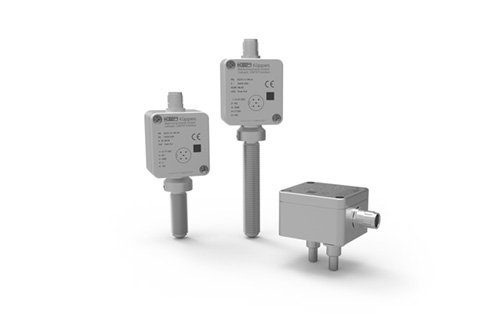

Carrier-Frequency Pulse Amplifiers (ECO series)
  • Supply voltage: UB: +12 up to 27 Vdc, controlled.
  • Quiescent current: < 20 mA.
  • Frequency range: 1 up to 5.000 Hz according to flow meter.
  • Single/double output.
  • The ECO pulse amplifiers can be equipped with all
    KEM flow meters.
Download
(ECO-serie)Download
(ECO1-serie)
Carrier-Frequency Pulse Amplifiers for direct mount (VTE 02)
  • Supply voltage: UB: +5 up to 30 Vdc.
  • Quiescent current: IR < 1 mA.
  • Frequency range: 0,5 up to 5.000 Hz according to flow meter.
  • Frequency pulse amplifiers for all KEM flow meters, for direct mount (LFM and ZHM) or screw in mount.
Download
Carrier-Frequency Pulse Amplifiers (VTE 03)
  • Supply voltage: UB: +5 up to 30 Vdc.
  • Quiescent current: IR < 1 mA.
  • Frequency range: 0,5 up to 5.000 Hz according to flow meter.
  • Carrier-frequency pulse amplifiers for all KEM flow meters.
Download
Carrier-Frequency Pulse Amplifiers for ZHM…CT and LFM (VTE 04)
  • Supply voltage: UB: +5 up to 30 Vdc.
  • Quiescent current: IR < 1 mA.
  • Frequency range: 0,5 up to 5.000 Hz according to flow meter.
  • Carrier-frequency pulse amplifiers for gear flow meter in cartridge design and micro flow meter.
Download
Carrier-Frequency Pulse Amplifiers (VTE Ex)
  • Supply voltage: 7 up to 29 Vdc.
  • Quiescent current: < 4 mA each channel.
  • Frequency range: 3 up to 3.000 Hz in accordance with flow meter.
  • Carrier-frequency pulse amplifier with single pickup, with terminal connection for screwing in for all KEM flow meters.
Download
Carrier-Frequency Pulse Amplifier with Dual Pickup (VTD)
  • Supply voltage: 5 up to 30 Vdc.
  • Quiescent current: IR < 2 mA.
  • Frequency range: 5 up to 5.000 Hz in accordance with flow meter.
  • Carrier-frequency pulse amplifier with dual pickup for pulse doubling and reverse-flow detection.
Download
Inductive Pickups and Amplifiers
(VIE 02)

  • Supply voltage: 5 up to 30 Vdc.
  • Quiescent current: IR < 1 mA.
  • Frequency range: 7 up to 5.000 Hz in accordance with flow meter.
  • Inductive Pulse Amplifiers with single pickup, for screwing in for all KEM flow meters.
Download

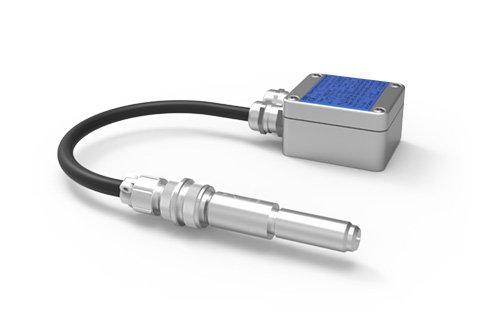

Inductive Pickups and Amplifiers for Extreme Fluid Temperatures (IF and VIE)
  • Max +150°C for SRZ Helical flow meters
  • Max +180°C for ZHM Gear flow meters
  • Max +350°C for HM Turbine flow meters.
  • Inductive pickups and amplifiers for extreme fluid temperatures from –273 up to +350°C.
Download

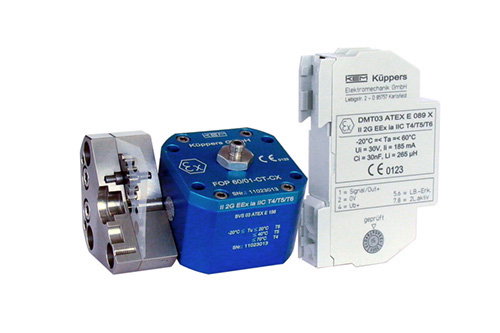

Fibreoptical Amplifier and Lightpulse Receiver (FOP and OPTV)
  • Power supply:
    lithium battery (FOP60 & 70).
    Supply Voltage: UB: +7 V up to +30 V (OPTV)
  • Ambient temperature: –20 up to +50 / +70°C.
  • Ex protection:
    ATEX: EX II 2 G EEx ia IIC T4/T5/T6
    CSA: Ex ia IIC; Class I, Zone 0, AEx ia IIC.
    IECEX: Ex ia IIC T4 Gb.
  • Fibreoptical amplifier and lightpulse receiver for applications in electrostatical painting systems.
Download (FOP60)

Download (FOP70)

ANKER

5b. Analoge Pick-up Versterkers

Type Eigenschappen Toepassingen Downloads
Local Converters with Interface (WT.02/WI.02)
  • Output signal: 4-20 mA, 2-wire (passive)
  • Operating voltage: 12-30 V, regulated
  • Measuring frequencies: 1 up to 3,000 Hz according to flow meter.
  • The converters are passive 4-20 mA sensors with carrier-frequency-input
    stage (WT.02) or inductive input stage (WI.02). Both analogue and
    frequency output can be linearized with up to 10 points.The carrier
    frequency converters WT.02 are recommended for low flow due to
    the low lower cut off frequency (typ. < 0.5 Hz).The inductive converters
    WI.02 are recommended for higher medium temperatures (up to +150°C).
Download

Download Manual

Local Converters with Interface (WT.02/WI.02)

  • Output signal: 4-20 mA, 2-wire (passive)
  • Operating voltage: 12-30 V, regulated
  • Measuring frequencies: 1 up to 5,000 Hz according to flow meter.
  • The converters are passive 4 – 20 mA sensors with inductive input stage.
    Both analogue and frequency output can be linearized with up to 10 points.
    The inductive converters are recommended for higher medium temperatures
    up to +350 °C [+662 °F]. The integral interface and the KEM EasyControl software allow for free programming.
Download
