Niveau drukopnemers (druk)

Meetbereiken van 0…50 mm tot 0…250 m waterkolom (25 bar). Uitvoeringen in RVS316L, PVDF, Teflon, Keramisch en Titanium voor agressieve media. Analoge uitgangen: mV, 0-1/5/10V en 4-20 mA, chakeluitgangen, RS232/485 en SDI-12 zijn mogelijk. Nauwkeurigheden tot 0,05% FS (actief gecompenseerd).
Beschermingsgraden tot IP68 (voor gebruik onderwater). Alle uitvoeringen ook verkrijgbaar in IS-safe uitvoering. Ook Keramische en Titanium membranen. GL-keur standaard. Datalogger voor druk-, nivo-, temperatuur- en geleidbaarheidsmetingen.

  1. Niveau-Drukopnemers
  2. Niveau-Drukopnemers-Programmeerbaar
  3. Niveau-Drukopnemers-Eex & Atex
ANKER

1. Niveau-Drukopnemers

Type Eigenschappen Downloads
MTM/N 10
AE Sensors BV MTM/N-10
  • Ressure measuring range: 10…100 mH2O
  • Accuracy: = ± 0.50 / 0.25
  • Operating temperature: -5…50 °C
  • Process temperature: -5…50 °C
  • Output signal: mV
    Materials: Stainless steel, Titanium
  • Feature: Level transmitter with 10 mm diameter, Versions with ATM/N or DL/N 70 possible.
 Download
ATM/N Ø19
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.2 / 0.10 / 0.05 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 0…5 / 0…10 V DC, 4…20 mA
  • Materials: Stainless steel
  • Feature: 19 mm diameter.
 Download

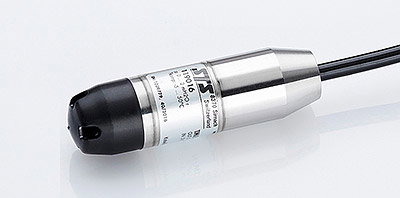

TM/N
AE Sensors TM/N
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: mV
  • Materials: Stainless steel, Titanium
 Download

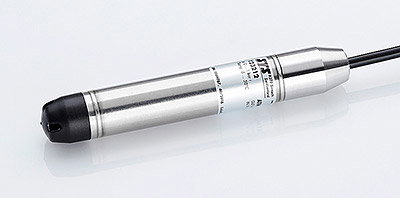

ATM/N
AE Sensors ATM/N
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 / 0.10 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 0…5 / 0…10 V DC, 0…20 / 4…20 mA
  • Materials: Stainless steel, Titanium
  • Feature: Optional surge (lightning) protection
 Download

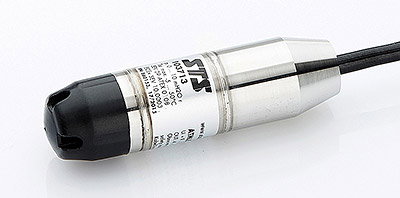

ATM.1ST/N
AE Sensors ATM.1ST/N
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS / 0.05 % FS
  • Total Error Band: = ± 0.30 %FS (-5…50 °C)
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 0…5 / 0…10 V DC, 4…20 mA
  • Materials: Stainless steel, Titanium.
 Download
ATM.ECO/N
AE Sensors ATM.ECO/N
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS / 0.05 % FS
  • Total Error Band: = ± 0.30 %FS (-5…50 °C)
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 0…5 / 0…10 V DC, 4…20 mA
  • Materials: Stainless steel, Titanium.
 Download

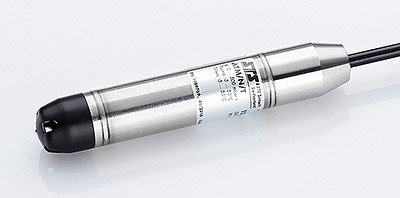

ATM/N/T
AE Sensors ATM/N/T
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 / 0.10 % FS
  • Temperature measuring range: -5…80 °C
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • 2 Output signals (p & T): 0…10 V DC, 0…20 / 4…20 mA
  • Materials: Stainless steel, Titanium.
 Download
ATM.1ST/N/T
AE Sensors ATM.1ST/N/T
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS / 0.05 % FS
  • Temperature measuring range: -5…80 °C
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel, Titanium.
 Download
ATM/NC
AE Sensors ATM/NC
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 2.0 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 0…5 / 0…10 V DC, 0…20 / 4…20 mA
  • Materials: PVDF
  • Feature: Optional surge (lightning) protection.
 Download

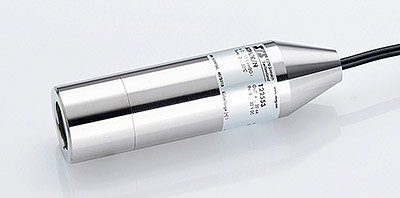

ATM/K/N
AE Sensors ATM/K/N
  • Pressure measuring range: 1…200 mH2O
    Ceramic sensorelement
  • Accuracy: = ± 0.25 % FS
  • Operating temperature: -5…50 °C
  • Process temperature: -5…50 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel
  • Feature: Optional surge (lightning) protection.
 Download
ANKER

2. Niveau-Drukopnemers-Programmeerbaar

Type Eigenschappen Downloads

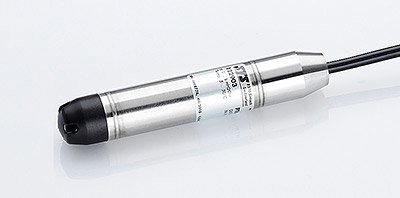

PTM/N
AE Sensors PTM/N
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS Adjustable 1:4 of the nominal range within -5% to +105%
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel, Titanium
  • Feature: Recalibration with software possible.
 Download

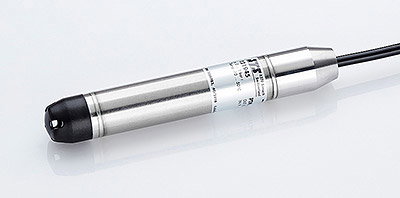

PTM/N/RS485
AE Sensors PTM/N/RS485
  • Pressure measuring range: 1…250 mH2O
    Adjustable 1:4 of the nominal range within -5% to +105% (analog output)
  • Accuracy: = ± 0.25 / 0.10 % FS
  • Temperature measuring range: -25…85 °C
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • 2 Output signals (p & T): 4…20 mA
  • Interface: RS485 (Modbus RTU)
  • Materials: Stainless steel, Titanium
  • Feature: Recalibration with software possible, optional surge (lightning) protection.
 Download

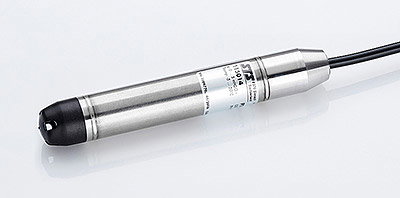

PTM/N/SDI-12
AE Sensors PTM/N/SDI-12
  • Pressure measuring range: 5…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS
  • Temperature measuring range: -25…85 °C
  • Operating temperature: -5…50 °C
  • Process temperature: -5…50 °C
  • Interface: SDI-12 (V1.3)
  • Materials: Stainless steel, Titanium
  • Feature: Recalibration possible, Adjustable units.
 Download

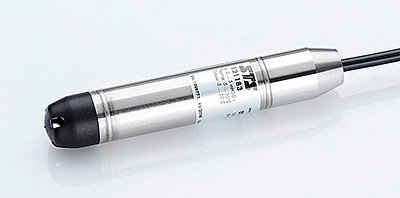

DTM.OCS/N-Modbus
AE Sensors DTM/OCS/S/N Modbus
  • Ressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.15 /0.05 / 0.03% FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Interface: RS485
    Materials: Stainless steel, Titanium
  • Feature: High Precision, Adjustment of zero and span setting through Modbus commands.
 Download
ANKER

3. Niveau-Drukopnemers-Eex & Atex

Type Eigenschappen Downloads
PTM/MT/Ex
AE Sensors PTM/MT/Ex
  • Pressure measuring range: 0…0,4 Bar /
    0…1 Bar / 0…2,5 Bar / 0…4 Bar / 0…6 Bar.
  • Accuracy: = ± 0.25 % FS.
  • Operating temperature: -20…100 °C.
  • Process temperature: -20…100 °C.
  • Output signal: 4…20 mA.
  • Materials: Titanium.
  • Hysteresis and repeatability better than 0.01 %.
  • Certificate: ATEX, IECEx and DNV-GL.
 Download

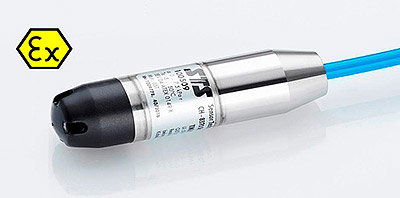

TM/N/Ex
AE Sensors TM/N/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: mV
  • Materials: Stainless steel, Titanium.
  • Certificate: ATEX.
 Download

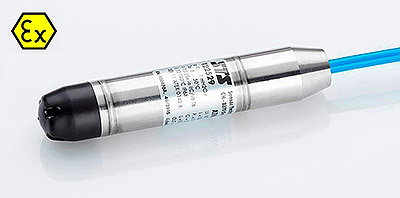

ATM/N/Ex
AE Sensors ATM/N/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 / 0.10 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel, Titanium
  • Feature: Optional surge (lightning) protection.
  • Certificate: ATEX.
 Download

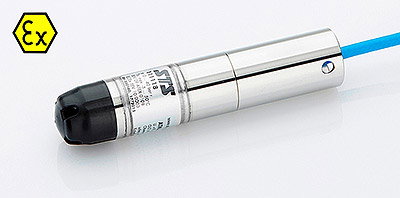

ATM.1ST/N/Ex
AE Sensors ATM.1ST/N/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS / 0.05 % FS
  • Total Error Band: = ± 0.30 %FS (-5…50 °C)
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel, Titanium.
  • Certificates: ATEX, IECEx, EAC, GL/DNV, ABS, Lloyds.
 Download

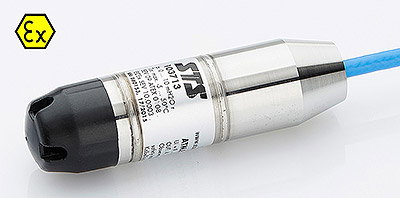

ATM.ECO/N/Ex
AE Sensors ATM.ECO/N/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 % FS
  • Total Error Band: = ± 0.70 %FS (-5…50 °C)
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: Stainless steel, Titanium.
  • Certificate: ATEX & IECEx.
 Download

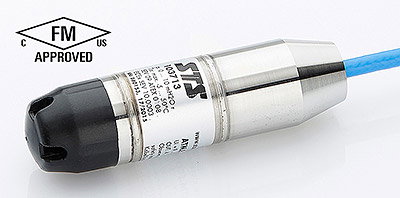

ATM/N/IS
AE Sensors ATM/N/IS
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.50 / 0.25 / 0.10 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: mV
  • Materials: Stainless steel, Titanium.
  • Certificate: FM & FM-C.
 Download
ATM/NC/Ex
AE Sensors ATM/NC/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 2.0 % FS
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
  • Materials: PVDF
  • Feature: Optional surge (lightning) protection.
  • Certificate: ATEX.
 Download

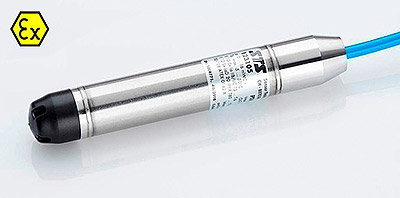

PTM/N/Ex
AE Sensors PTM/N/Ex
  • Pressure measuring range: 1…250 mH2O
  • Accuracy: = ± 0.25 / 0.10 % FS
    Adjustable 1:4 of the nominal range within -5% to +105%
  • Operating temperature: -5…80 °C
  • Process temperature: -5…80 °C
  • Output signal: 4…20 mA
    Materials: Stainless steel, Titanium
  • Feature: Recalibration with software possible.
  • Certificate: ATEX.
 Download
